KILTER or SPRAY T-NUTS WILL BE SHIPPED AS IMPERIAL UNLESS METRIC IS REQUESTED.
GRASSHOPPER: We use set screws, not T-nuts.
Climbing Wall above hinge is 12’W x 12’H
Premium kick board can be mounted at 23.5" or 30" high
Hanging kick board can be mounted at 12.5", 16" or 24" high
Premium @20° 160.5", @40° 137"
Hanging @20° 149.75", @40° 126"
Premium 31" behind kick board, 93" from kick board to top of wall @40°
Hanging 18" behind kick board, 93" from kick board to top of wall @40°
Fall Zone of 13' (156") depth by 17' (204") wide suggested
All Grasshopper products can be assembled and installed by our customers.

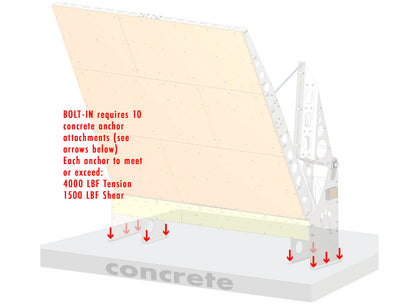

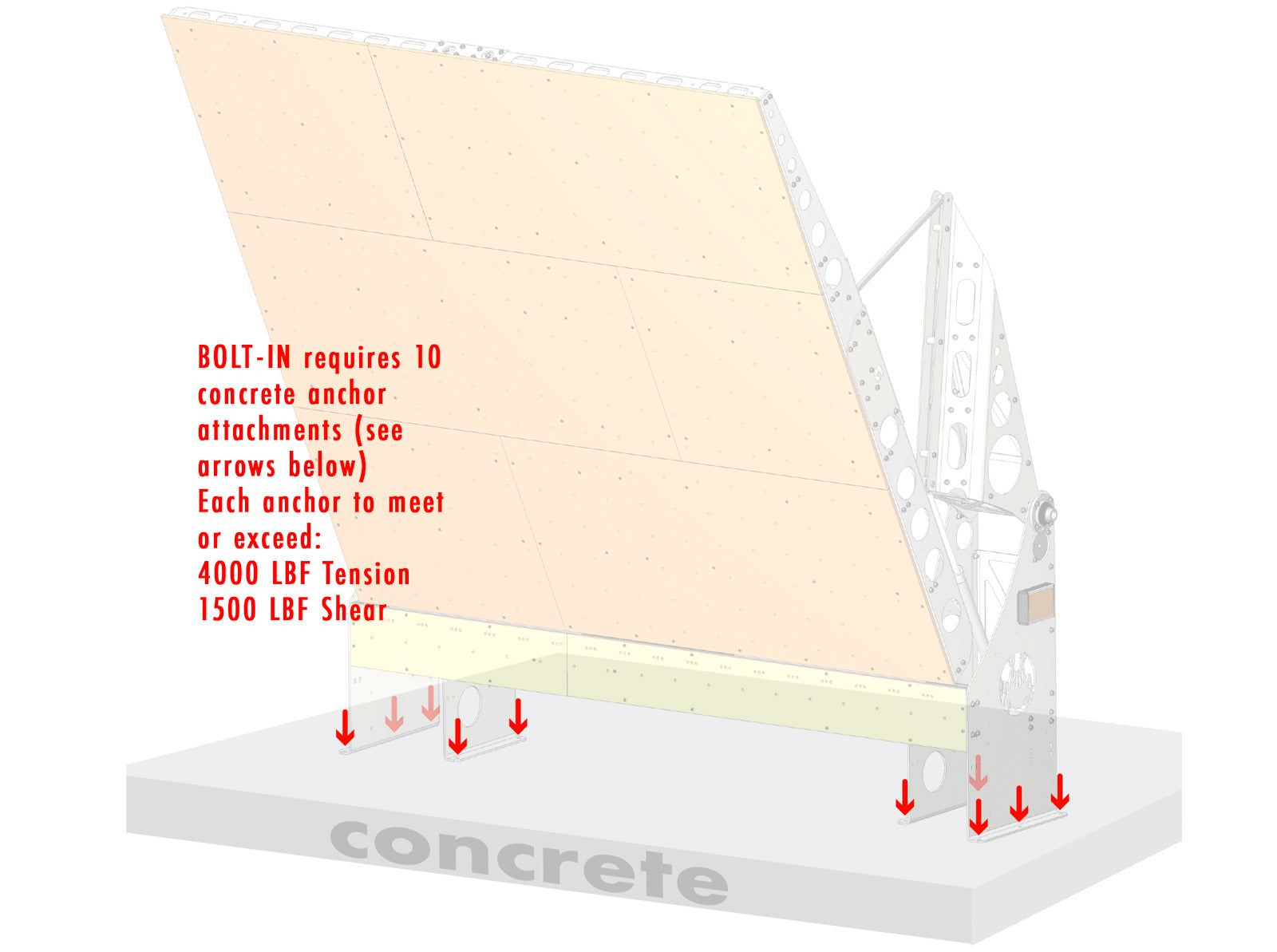

Premium: Our Bolt-In version bolts into concrete slab and does not require additional support from a structural wall. Our FreeStanding, is actually freestanding, and requires no bolting into any infrastructure. -We recommend a Grasshopper representative be onsite for Premium installs (extra charge).

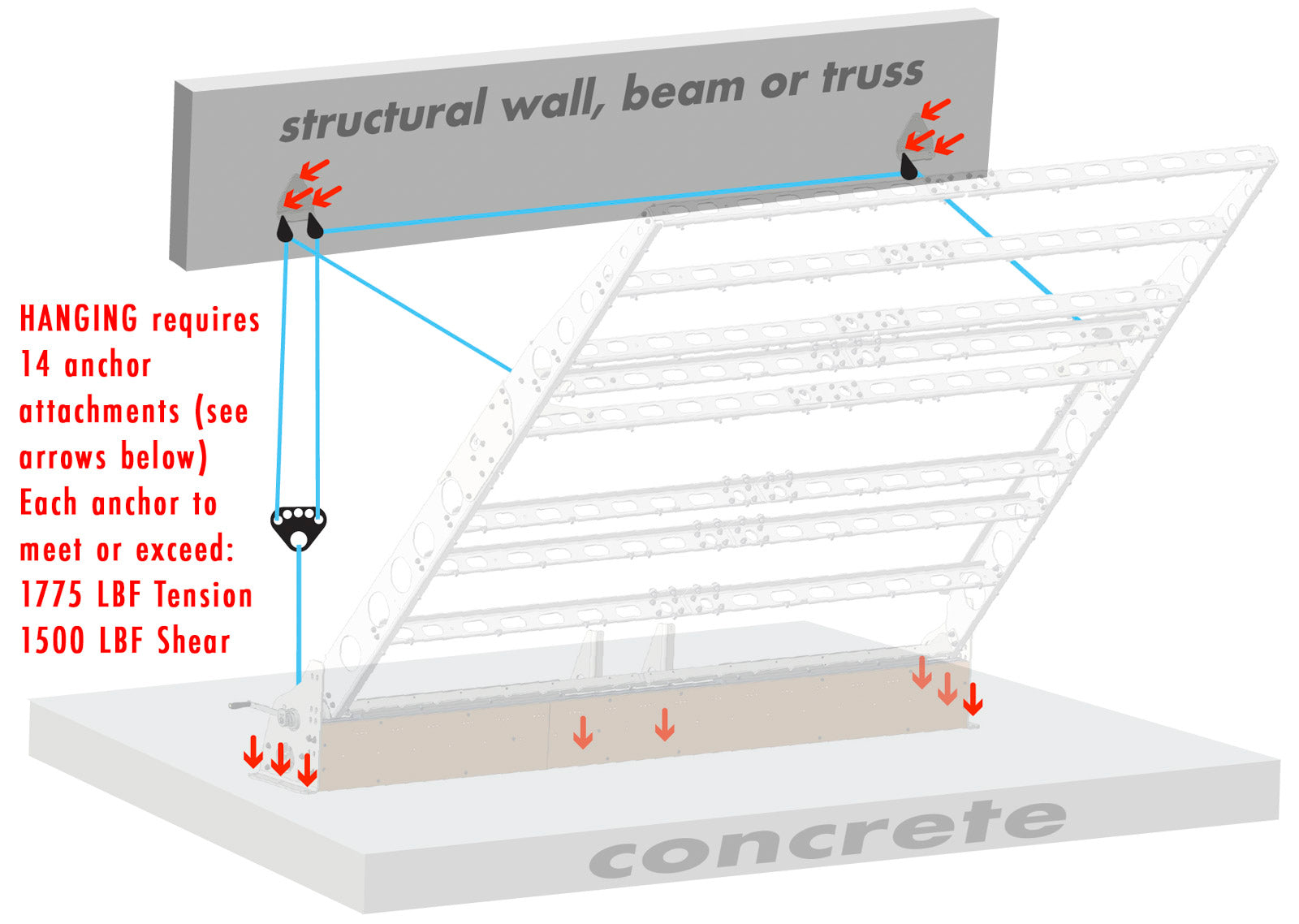

Hanging: Requires an inspection of your infrastructure to determine whether it can withstand the loading requirements. Once the the requirements are met, installation can be handled by customer.
Just like our Master Wall, the Grandmaster mounts to two points into a structural concrete wall or header beam in a bearing wall. Always consult with your architect, engineer or licenced contractor and refer to our Facilities Requirements Document.
We recommend 16x16 feet deep for safety. Jumping laterally can send a climber falling away from the wall. 12" thick is recommended.
